Developer Guide¶

exaslct is the build tool for the script language container. This document is about the inner working of exaslct.

Preparations¶

This project uses pre-commit to run certain Githooks for validation. You don’t have to install pre-commit as it will be installed with the exasol-toolbox. You can activate the Githooks simply by running:

pre-commit install

However, if you don’t want to run all the checks during every commit, you can use:

poetry run nox -s check

to run all available checks on the project.

About the Script Language Containers¶

The Script Language Containers are getting build from several Dockerfiles which depend on each other. These Dockerfiles need to install all necessary dependencies for the script client, compile the script client and install all necessary dependencies for the flavor and the customizations of the user.

Problem Statement¶

The old-style to build the containers was slow and laborious. A single change in the dependencies required a rebuild of everything. Furthermore, essential dependencies for the script client were mixed with flavor dependent dependencies. Changes were difficult for users and could break the container. It was actual unclear which of the dependencies were essential and which were not. For some flavors it was impossible to run the build on travis, because it exceeded the maximum runtime per job of 50 minutes. The build system and the test runner were both bash scripts which were messy and difficult to maintain. They worked with background jobs to do things in parallel which convoluted the logs which made error analysis difficult. Further, the test runner left temporary files which were owned by root, because they were created by a docker container.

Design Goals¶

Easy customization of existing flavors for the user
User customizations are not able to break the container
Allowing different build steps per flavor
Separation of concern for code and Dockerfiles
Parallel builds
Partial builds
Local and remote caching
Faster development cycles for the script client
Allowing output redirection for testing of the flavor
Encapsulate running the tests and all its dependencies into docker containers or volumes.
Error resilient

Programming Model¶

exaslct is a mix of a build system, test runner and infrastructure as code. As such, we typically have tasks like the following one:

Build Image
Start Container
Upload something

Most of these tasks produce some kind of output, for example:

docker image
a running docker container

Often, other tasks then depend either on the output, or the action of one or more other tasks. These dependencies build a direct acyclic graph of tasks, also known as workflow.

Tasks that depend on each other need to run in sequence, but tasks which are independent of each other may run in parallel. This model also allows a good separation of concern, because each Task solves one Problem.

As workflow executor, we use Luigi which was actually developed for batch data science workflows, but is suitable for other scenarios, too. Luigi describes tasks as subclasses of Luigi.Task which implements the following methods:

class TaskC(luigi.Task):

    def output(self):
        return Target()

    def run(self):
        #do somthing
        pass

    def requires(self):
        return [TaskA(),TaskB()]

Here we describe a TaskC which depends on TaskA and TaskB defined in the requires() method. It does something which is specified in the run() method. Further, it produces Target() as output. Luigi provides the dependency resolution, scheduling and parallelization.

Besides, this static way of describing the dependencies between tasks, Luigi also provides so called dynamic dependencies, which allow more flexible patterns in special case. Especially, if the order of execution of dependencies is important, or the dependencies depend on some calculation. The dynamic dependencies allow the implementation of a fork-join pattern.

In exaslct we use our own subclass of Luigi.Task, StoppableTask as base class. The StoppableTask adds profiling, recording of dependencies for visualization or debugging and stops if any other StoppableTask failed in the workflow.

Build Steps and Their Dependencies¶

We compose the language container from several Dockerfiles. Each Dockerfile installs dependencies for one specific purpose. We also added a separate Dockerfile flavor-customization for user specific changes. The user specific changes will be merged on filesystem basis with the resulting docker images for the script client. The merge will overwrite user specific changes that could prevent the script client from working properly.

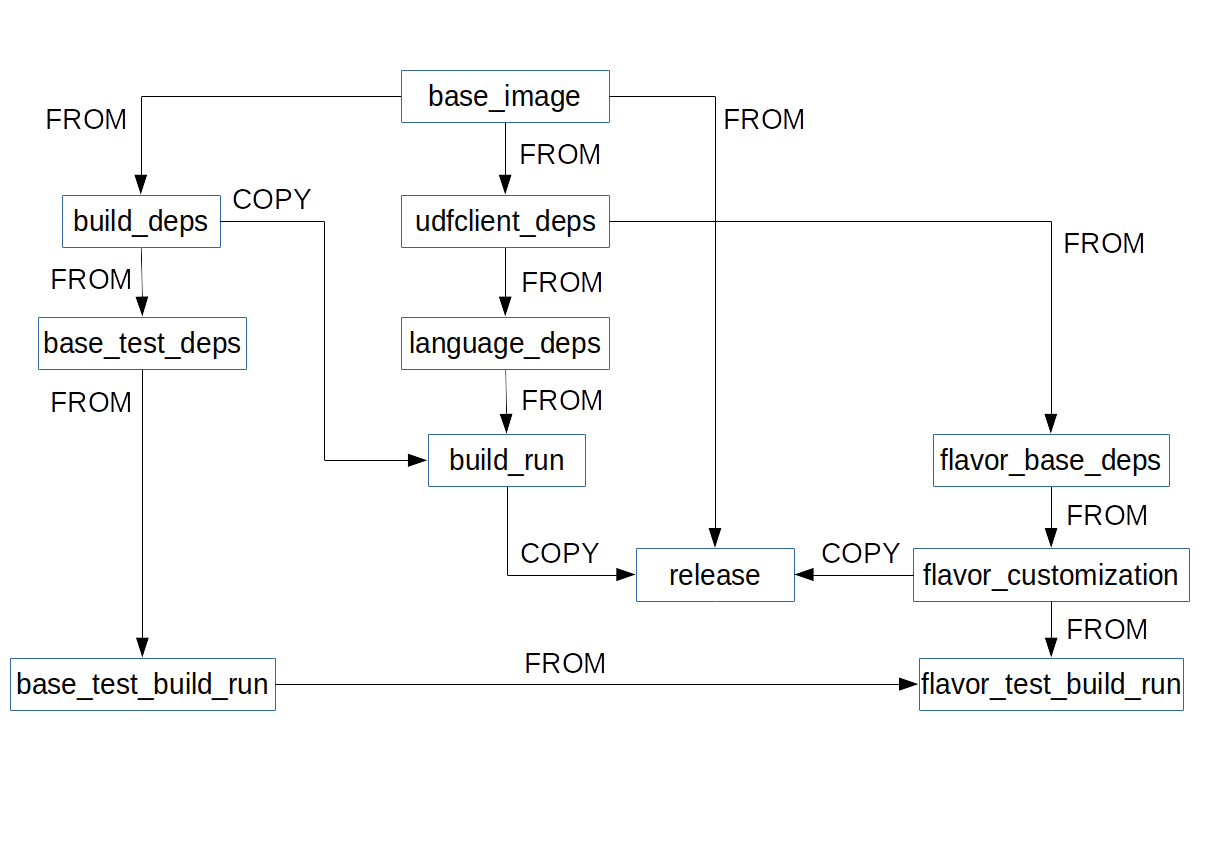

The following graph shows the default build steps and their dependencies.

A dependency between build steps can be either a FROM or COPY dependencies. A FROM dependency means that the target of the arrow uses the source of the arrow as base image. A COPY dependency means that the target of the arrow copies parts of the source of the arrow.

All steps with the string “build_run” in their name, either run the build for the script client or at least inherit from an image which had built it. As such these images contain all necessary tools to rebuild the script client for debugging purposes.

How do we Define Build Steps for a Flavor?¶

Each flavor has a build_steps.py file in the /flavor_base directory which defines the build steps as classes which inherit from DockerFlavorAnalyzeImageTask. For example:

class AnalyzeBuildRun(DockerFlavorAnalyzeImageTask):

    def get_build_step(self) -> str:
    # name of the build step, which defines the directory name
    # for the build context of this image and gets used for the
    # build boundaries
        return "build_run"

    def requires_tasks(self):
    # other build steps the current build step depends on, the keys used here,
    # get replaced in your dockerfile with the actual image names of your dependencies
        return {"build_deps": AnalyzeBuildDeps(flavor_path=self.flavor_path),
                "language_deps": AnalyzeLanguageDeps(flavor_path=self.flavor_path)}

    def get_additional_build_directories_mapping(self) -> Dict[str, str]:
    # additional build directories or files which are specific to the build step
        return {"src": "src"}

    def get_path_in_flavor(self):
    # to get the path to the build context of the build step within the flavor path
        return "flavor_base"

    def get_image_changing_build_arguments(self):
    # optional: build arguments which might change the image content
        return dict()

    def get_transparent_build_arguments(self):
    # optional: build arguments which won't change the image content
        return dict()

How Does Caching Work?¶

exaslct was built with caching in mind, because building a flavor might take very long, and many build steps don’t change that often. Furthermore, an end user most likely only changes the build-step flavor-customization which is designed to have a minimal impact on all other build steps.

Which Caches are Available?¶

exaslct provides three types of caching:

docker images managed by the docker daemon.
file system cache with saved docker images.
docker registry as a remote cache.

All caches can work together, the analysis phase checks in which cache an images is available. The different type of caches have different precedence which might you override by command line parameters. The precedence is derived by how fast is an image available. Docker images managed by the docker daemon are instantaneously available. Saved docker images on the filesystem follow next, they need to be loaded by the daemon, but are most likely on a local file system. The last cache which gets checked is a docker registry, because it is most likely not local and needs transport over network.

Finding the Corresponding Docker Images to the Current Build Context¶

exaslct computes a hash value for the whole build context of an image and adds the hash value to the tag of the image. Responsible for hashing the build context is the BuildContextHasher which uses the FileDirectoryListHasher.

The BuildContextHasher combines the hash values of all directories, files and their executable permissions of the build context, such as the hash values of all images the current images depends on, and the image changing build arguments to one hash value for the image.

Other build arguments which only influence the resources which are used to build the image are not part of the final hash. The BuildContextHasher hashes the execution rights of files, because these are the only rights which get saved in git and can be important for the images.

Updating Drivers and ExaPlus¶

exaslct uses drivers and SQL Client ExaPlus for tests:

JDBC driver
OBDC driver
ExaPlus

Instructions

You can download the latest versions from https://downloads.exasol.com/clients-and-drivers/odbc.
When downloading the ODBC driver, then please ensure to select the correct operating system, e.g. “Linux (x86_64)”.
Copy the download URL used by your browser into file test/resources/test_container/full/build/Dockerfile.
Update the path to the resp. *.so files in file lib/tasks/test/run_db_test.py, method command_line() in line 96.

Creating a Release¶

Prerequisites¶

Change log needs to be up to date
unreleased change log version needs to be up-to-date
Release tag needs to match package

For Example: Tag: 0.4.0 `poetry version -s`: 0.4.0

Preparing the Release¶

Run the following nox task in order to prepare the changelog.

.. code-block:: shell

    nox -s release:prepare

Triggering the Release¶

In order to trigger a release a new tag must be pushed to Github. For further details see: .github/workflows/release.yml.

Create a local tag with the appropriate version number
```
git tag x.y.z
```
Push the tag to Github
```
git push origin x.y.z
```

What to do if The Release Failed?¶

The Release Failed During Pre-Release Checks¶

Delete the local tag
```
git tag -d x.y.z
```
Delete the remote tag
```
git push --delete origin x.y.z
```
Fix the issue(s) which lead to the failing checks
Start the release process from the beginning

One of the Release Steps Failed (Partial Release)¶

Check the Github action/workflow to see which steps failed
Finish or redo the failed release steps manually

Example:

Scenario: Publishing of the release on Github was successfully but during the PyPi release, the upload step got interrupted.

Solution: Manually push the package to PyPi
